CA872/CA872BL

CA872

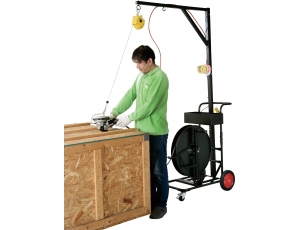

Hang and hold the tool to minimize operator effort during the use if the tool.
Designed to withstand tool weight max. 15 kgs.
Good for plastic and steel strapping coil that has 200 mm(8") or 400 mm(16") inner core.
Load strap coil while keeping the dispenser in upright position.
Big tool tray 450 x 220 x 130mm.
One storage pin behind the tool tray to hold warehouse accessories such as pens, rulers, knives, stretch wrap roll, etc.
Lacing rod holder included.
Casters with brake.

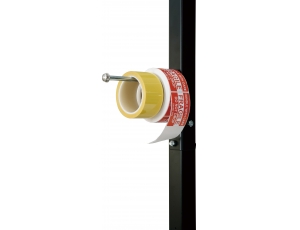

One hanging bar above toll tray to keep label or tape rolls.
Dispenser Size: Max. 120 x 55 x220cm. 42 kgs.
Core size(mm): 200 and 400
Max. strap width(mm): 40
Max. face coil(mm): 200
Disc outer dia.(mm): Metal 610
Coil winding: R/O
Wheel type: 10" rubber w/steel center
Assembled: Semi
CA872BL
Tool suspend spring balancer.
Capacity 5~7 kgs.
Travel 1.3M.
Rope diameter 3.2mm.
1.85 kgs/tool.
